30-Degree Escalator Angle Analysis: Design & Safety Guide

By Admin | 27 Jul, 2026

Why 30 Degrees Is the Industry Standard and How It Compares

Escalators are indispensable in modern architecture, efficiently moving millions of people every day between floors in shopping malls, airports, metro stations, hotels, and office complexes. While escalators may appear similar, one fundamental design element that significantly impacts their safety, performance, and passenger comfort is the tilt angle the angle at which the escalator rises or descends relative to the horizontal.

Among the range of tilt angles used around the world, the 30-degree incline has become the widely accepted standard. This post delves deeply into why 30 degrees is favored, how it compares to other common tilt angles, and the practical, ergonomic, and safety implications of this choice.

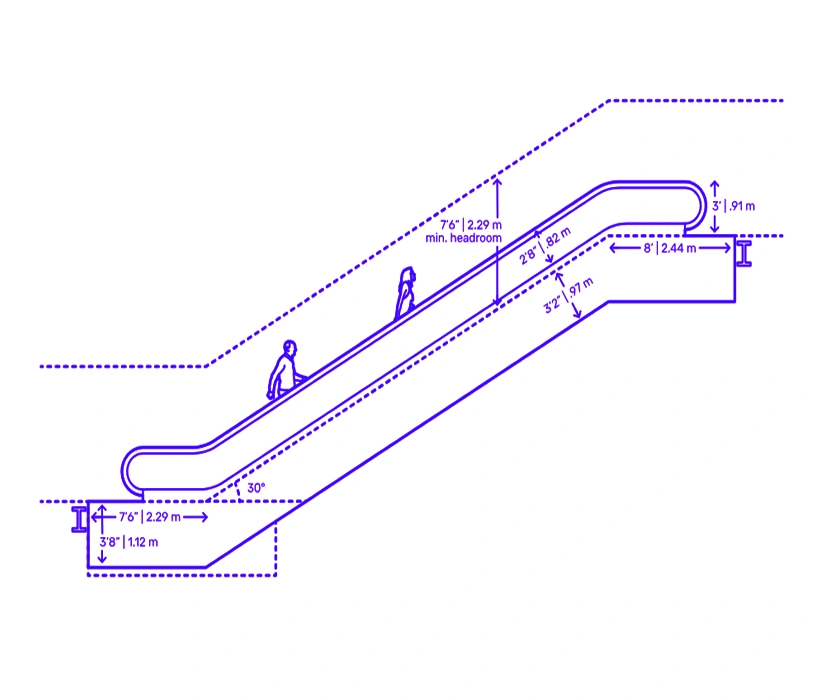

What is Escalator Tilt Angle?

The tilt angle of an escalator is the angle formed between the escalator’s moving steps and the horizontal ground. Essentially, it dictates how steep or gentle the escalator is.

Escalators are not perfectly vertical but inclined, allowing passengers to ascend or descend smoothly and safely. Tilt angles typically vary between 27 degrees and 35 degrees, but the 30-degree angle has become the dominant standard worldwide.

Why Is 30 Degrees the Most Common Tilt Angle?

The 30-degree tilt angle strikes an effective balance between several key factors:

1. Optimal Safety and Stability

A 30-degree angle ensures that passengers stand on steps that feel secure and stable without the sensation of excessive steepness. This reduces the risk of slips, trips, and falls. The step tread and riser dimensions at this angle optimize footing and balance, especially for elderly passengers or those with mobility challenges.

2. Ergonomic Passenger Comfort

The human body can comfortably adjust to a 30-degree incline without undue strain. Passengers can either stand still or walk on the escalator steps with ease. The angle facilitates natural foot placement and stride, reducing fatigue during longer rides.

3. Space and Design Efficiency

Escalators with a 30-degree incline occupy less horizontal space compared to those with gentler slopes (like 27 degrees), enabling architects to maximize floor space in densely constructed buildings. It also allows for shorter escalator lengths without compromising rise height.

4. Mechanical and Energy Efficiency

Operating at 30 degrees balances motor power requirements and mechanical stress on components. This inclination reduces energy consumption compared to steeper escalators, while minimizing wear and tear on moving parts, resulting in lower maintenance costs.

How Does the 30-Degree Angle Compare to Other Common Tilt Angles?

27-Degree Escalators

• Use Case: Often installed in older or spacious buildings where horizontal space is not limited.
• Advantages: Gentler slope provides slightly more comfort for standing passengers and may be preferable for very high-traffic areas with long escalators.
• Disadvantages: Requires more horizontal space and longer escalator lengths, increasing footprint and potentially cost.

35-Degree Escalators

• Use Case: Found in environments where space is extremely limited, such as urban buildings or underground stations with tight spatial constraints.
• Advantages: Steeper angle allows for shorter escalators that occupy less floor space horizontally.
• Disadvantages: May cause discomfort for some passengers, with a slight increase in perceived risk and difficulty, especially for elderly or disabled users.

30-Degree Escalators

• Use Case: Standard in most new escalator installations globally, from airports to malls.
• Advantages: Combines comfort, safety, and space efficiency, making it the preferred choice.
• Disadvantages: Slightly steeper than 27 degrees, but overall well accepted.



Practical Implications of Choosing the 30-Degree Tilt Angle

Passenger Flow and Safety

Escalators operating at a 30-degree incline provide consistent and smooth passenger flow, accommodating both standing and walking riders. The design minimizes sudden movements and encourages balanced foot placement, improving overall safety.

Accessibility

With growing emphasis on accessibility, 30-degree escalators meet many regulatory standards for ease of use by individuals with disabilities, older adults, and children. The angle supports safe boarding and exiting, especially when combined with other safety features.

Installation and Architecture

Choosing a 30-degree escalator simplifies architectural planning because:

• The industry standard means escalator components, such as steps, handrails, and motors, are optimized for this angle.
• Installation timelines are generally shorter due to familiarity and availability of standardized parts.
• Maintenance personnel are well trained on 30-degree escalators, ensuring reliable upkeep.

Energy Consumption and Sustainability

Escalators with a 30-degree tilt can be fitted with energy-efficient motors and regenerative drives that feed energy back into the building’s power system when the escalator is descending. This makes them a sustainable choice aligned with modern green building standards.

Safety Features Complementing the 30-Degree Tilt

The tilt angle alone does not ensure safety. Modern escalators are equipped with multiple features that work alongside the 30-degree design to protect passengers:

• Handrails: Move at the same speed as steps to offer support.
• Step Demarcation Lighting: Clearly marks step edges for visibility.
• Skirt Brushes: Prevent items or fingers from becoming trapped between the steps and side panels.
• Emergency Stop Buttons: Located at both ends for immediate halting in case of incidents.
• Automatic Sensors: Detect obstructions and halt or reverse movement as needed.

Case Studies: Real-World Applications of 30-Degree Escalators

·        Airports

·     Airports like Dubai International and Heathrow utilize 30-degree escalators extensively, enabling efficient vertical movement between terminals while maximizing space and ensuring passenger safety.

·         Shopping Malls

·    Large malls such as the Mall of America and Saudi Arabia’s Red Sea Mall rely on 30-degree escalators to move thousands of shoppers daily between floors without causing congestion or discomfort.

·         Metro Stations

   Public transit systems often have limited space and require durable, efficient escalators. The 30-degree angle meets these needs by fitting compactly into station designs and handling heavy passenger flows reliably.

The 30-degree tilt angle for escalators has become the global industry standard for a reason. It balances passenger comfort, safety, space efficiency, and mechanical reliability better than alternative angles. This makes it the preferred choice for a vast range of environments—from airports and shopping centers to office towers and metro stations.
