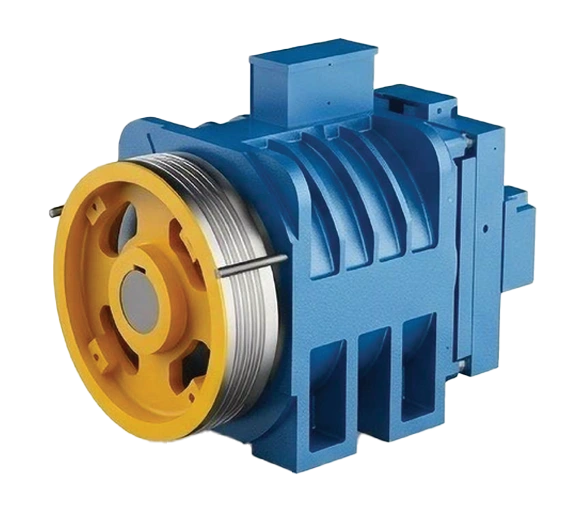

FUJI MRL Traction Machine for machine room less installations represents a significant advancement in space-saving urban mobility designs. Modern architectural projects regularly require vertical transportation systems that minimize the structural footprint within a building while maintaining complete mechanical reliability. When designing modern residential or light commercial properties, finding an elevator traction machine that fits directly inside the hoistway can completely change how structural space is allocated. This specialized gearless traction machine/motor is engineered to operate without an overhead concrete penthouse, allowing architects to utilize the highest floors for functional purposes rather than mechanical storage. By moving away from massive, bulky traditional assemblies, this technology streamlines physical layouts while delivering strong performance metrics.

Features:

• This machine is used for machine roomless.
• Break voltage corresponds to its Start & Sustaining voltage.
• Other configurations, also outside of the examples listed above, are possible.

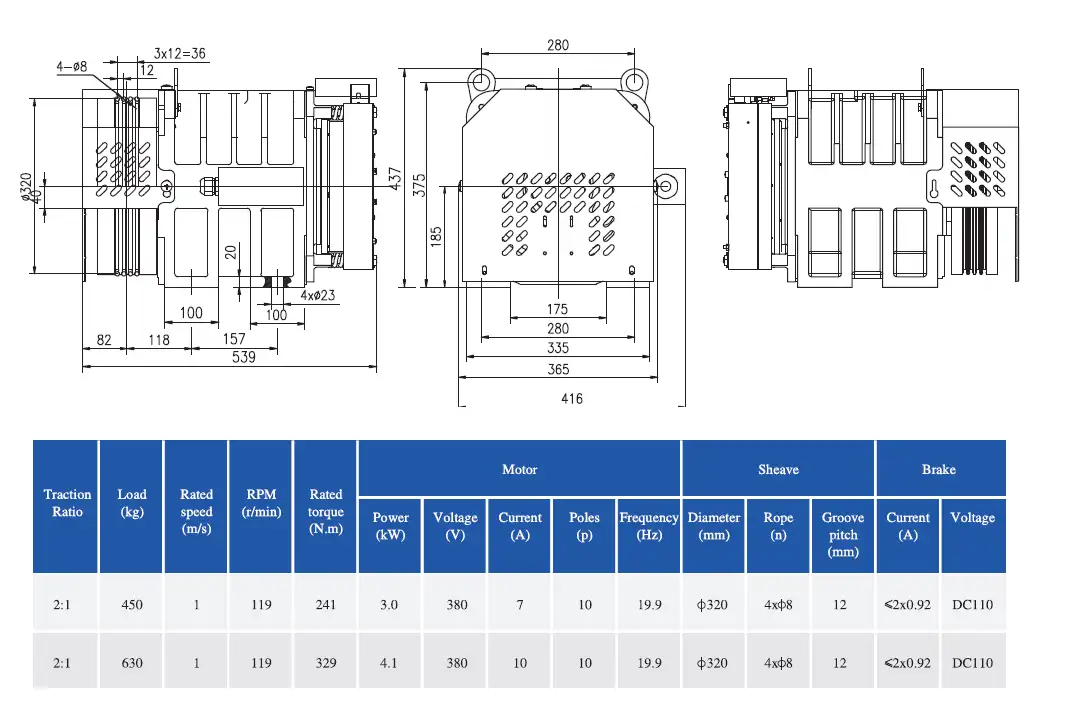

OUTLINE DIMENSION DRAWING:

Roping Configurations and Structural Load Efficiency

Operating on a standard 2:1 roping system, this lift traction motor optimizes its mechanical output by distributing the physical weight across multiple suspension lines. In this setup, the hoist cables move at twice the linear velocity of the elevator car, which halves the required output torque on the main drive sheave. This mechanical advantage allows a lighter, 200 kg motor to control a substantial dynamic load effortlessly. The physical structural frame of the machine handles a maximum able load of 2500 kg in terms of static shaft forces. This high structural threshold ensures that the physical ropes, counterweights, and entire cabin tracking mechanism remain stable even during sudden stops or rapid directional transitions.

Voltage Standards and Power Delivery

To maintain steady torque profiles during periods of heavy foot traffic, the system runs on a 380 V three-phase alternating current supply. This voltage standard provides the necessary electrical stability required to power a highly responsive traction machine within modern building networks. Proper voltage alignment prevents severe current spikes during initial acceleration, ensuring that the local electrical grid remains balanced. This precise electrical profile matches standard commercial building power installations, simplifying the initial wiring process and reducing the need for costly external step-down transformers or auxiliary power regulators.

Mechanical and Structural Capabilities

Choosing the correct drive mechanism requires analyzing the intended occupancy and usage patterns of the building asset. The physical layout must match the structural requirements of the shaft perfectly.

Dynamic Weight Capacity Parameters

This motor features a targeted rated load capacity of 450-630 kg, which fits perfectly with standard passenger dimensions for low-to-medium rise structures. This weight capacity typically accommodates six to eight passengers comfortably, making the drive system highly practical for mid-sized real estate developments. The electrical control drive adjusts the output torque dynamically based on the real-time weight inside the cabin, ensuring that acceleration curves remain uniform whether the vehicle is empty or fully loaded. This constant speed regulation provides a reliable ride experience that matches the expectations of modern property owners.

Eliminating the Machine Room Footprint

Unlike older heavy-duty systems found in traditional high rise buildings, this machine-room-less configuration places the entire lift traction machine within the upper bounds of the elevator shaft itself. Weighing only 200 kg, the compact physical frame can be securely mounted to the structural guide rails or top hoistway beams. This layout gives architects complete freedom to design flat, modern rooflines without ugly concrete machine rooms sticking out above the building structure. It also saves thousands of dollars in raw material construction costs during the initial building phases.

Efficiency and Environmental Impact

Evaluating continuous energy consumption is a core requirement for modern sustainable construction management. Traditional geared lifting systems lose a significant percentage of their input power to friction and heat dissipation within worm gears and oil reservoirs.

Optimizing Energy Consumption Trends

Utilizing an advanced PMSM traction machine layout, this unit integrates permanent magnets inside the rotor frame to establish a constant, reliable magnetic flux field. Because the motor does not draw current to induce magnetism within the rotor, the electrical draw remains proportional to the actual load inside the elevator car. This smart energy usage profile reduces operational overhead significantly over decades of use. Additionally, the system generates minimal heat, lowering the cooling loads required for the surrounding structural hoistway or mechanical enclosures.

Thermal Management and Protection Ratings

The motor winding assembly uses premium Class F insulation materials, which are certified to maintain structural integrity under continuous operating temperatures up to 155 degrees Celsius. This protection keeps the internal copper coils safe from thermal degradation during high-demand periods. The external casing features an IP41 protection code, guarding the internal components against solid debris larger than 1 millimeter and protecting the motor from vertically dripping water or shaft condensation. This protective casing keeps the core operational elements clean and free from external contaminants.

Integration and Safety Protocols

The absolute most critical aspect of vertical mobility engineering is guaranteeing the safety of elevator users. Every component must feature redundant protection systems to prevent operational failures.

Guaranteeing the Safety of Elevator Systems

An integrated dual-circuit electromagnetic braking system is mounted directly to the main drive shaft of this lift traction machine. These brakes operate on a fail-safe mechanical principle, meaning that internal high-tension springs engage the brake shoes immediately whenever electrical power is removed. This rapid physical response stops the elevator car securely inside the shaft, protecting passengers from uncontrolled drift or acceleration. High-resolution feedback encoders track rotational changes continuously, reporting data back to the primary system controller to initiate emergency stops if any speed deviations occur.

Compatibility with Modern Elevator Components

As a genuine JAPAN TECHNOLOGY MOTOR, every structural element is machined within strict tolerances to reduce internal mechanical friction and minimize vibration. This precise execution ensures that when a lift traction machine operates under continuous duty cycles, the passengers experience a smooth ride without abrupt vibrations or mechanical humming. The drive sheave is engineered to match standard steel hoist cables precisely, ensuring optimal grip and preventing premature rope wear. This high level of component compatibility reduces overall maintenance demands, keeping the vertical transit system running smoothly year after year.

Application Versatility and Maintenance Profiles

Modern real estate projects demand flexible equipment options that can handle diverse installation challenges without requiring custom modifications.

Implementation in Residential Buildings

In residential buildings, space efficiency and acoustic control are critical parameters for property developers. This gearless traction machine/motor runs quietly because it does not use a traditional mechanical reduction gear set. Eliminating the gearbox removes the source of high-frequency mechanical noise, allowing designers to position the elevator shaft directly adjacent to living quarters without generating noise complaints. Property owners enjoy a reliable private transport system that remains unobtrusive throughout continuous day and night operation.

Performance in Commercial Spaces

For a compact commercial building or boutique corporate facility, vertical transportation must remain highly consistent to prevent lobby congestion during rush hours. This elevator traction machine handles repetitive stop-and-start operations without experiencing drop-offs in torque or physical responsiveness. It ensures that the transport people rely on operates continuously without overheating. The overall reliability of these vital elevator components helps protect the asset owner's infrastructure investment by minimizing downtime and reducing emergency engineering interventions.

Simplified Maintenance Profiles

Because this gearless machine operates without internal gear oil, maintenance protocols are direct and highly cost-effective. Engineering teams do not have to conduct regular oil changes, swap out worn gear filters, or manage chemical disposal routines. Routine service checks focus on verifying the mechanical brake air gaps, testing electrical wire terminations, and checking the physical wear profiles of the rope grooves on the drive sheave. This streamlined maintenance cycle ensures the system stays online with minimal service disruption, providing safe and steady transport people can depend on for years to come.
