FUJI Traction Machine for Home lift

FUJI Traction Machine for Home lift | MRL Traction Motor

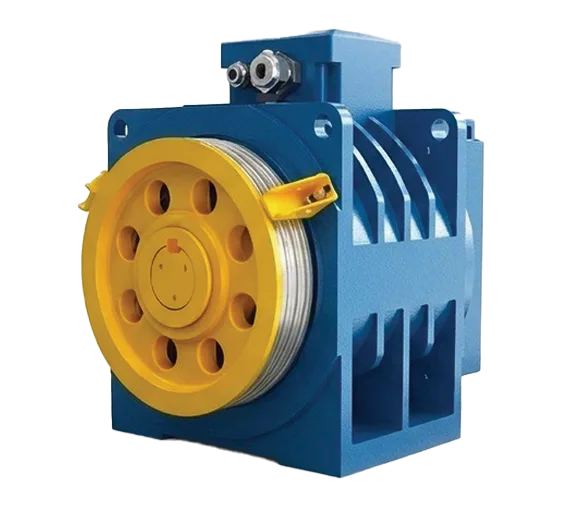

FUJI Japan Traction Machine for Home lift stands as a highly specialized engineering solution designed specifically for modern residential properties. Homeowners and private builders require compact, quiet, and dependable lifting systems to transport people comfortably between household floors. This domestic vertical transportation equipment focuses heavily on spatial economy and energy optimization, moving away from massive industrial setups. Integrating a dedicated motor into a private villa requires careful calibration of power requirements and structural weight limits. This particular system features a rated load of 450 kg, making it perfectly proportioned for an elevator car that accommodates three to five passengers. By matching the precise scale of a personal residence, the motor avoids drawing excessive current from the residential power grid. It runs on a standard 380 V three-phase power supply, ensuring stable electrical performance without voltage drops during routine daily usage.

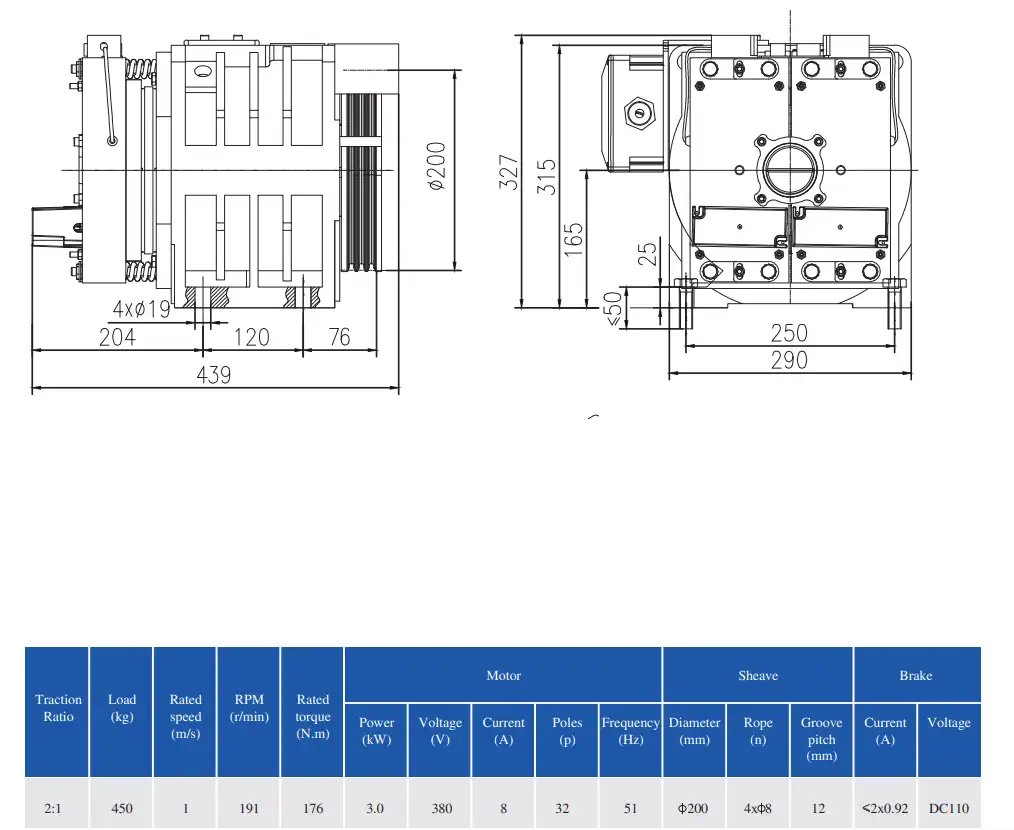

OUTLINE DIMENSION DRAWING

Selecting appropriate elevator components for home infrastructure demands a thorough understanding of mechanical load distributions and spatial constraints. A standard lift traction machine used in large public facilities is far too heavy and noisy for a personal residence. This specialized lift traction motor weighs only 126 kg, allowing installation teams to handle and position the unit inside the structural hoistway without needing heavy overhead cranes. Despite its remarkably low physical weight, the structural frame handles a maximum static load of 1900 kg. This high structural threshold ensures that the vehicle, ropes, counterweights, and structural frame remain securely anchored and balanced under all operating conditions. The engineering behind this traction machine enables developers to maintain a minimal structural footprint while guaranteeing complete mechanical stability under maximum capacity conditions.

The application of 2:1 roping dynamics allows this elevator traction machine to deliver high lifting performance while utilizing a smaller, more efficient electrical motor. In a 2:1 roping configuration, the hoisting ropes travel at twice the speed of the elevator car, which doubles the mechanical advantage and reduces the torque requirement on the main drive shaft. This design choice enables the elevator traction motor to run smoothly with lower thermal output, extending the operational life of the internal bearings and windings. Because the motor works under less direct mechanical stress, the generation of structural vibration is minimized. Homeowners benefit from a peaceful indoor environment, as the low-frequency humming typically associated with mechanical lifting units is completely contained within the insulated shaft walls.

At the core of its efficiency is the modern gearless traction machine/motor architecture, which completely removes the traditional mechanical gearboxes found in older residential lifts. Traditional geared systems rely on complex worm gears and continuous oil lubrication, which frequently results in oil leaks, mechanical noise, and high internal friction. By selecting a gearless design, this system operates via direct drive, applying rotational force straight from the motor shaft to the traction sheave. This direct application of torque makes the PMSM traction machine inherently superior regarding energy consumption and mechanical precision. Permanent magnet synchronous motor technology ensures that the rotor operates in perfect synchronization with the magnetic field of the stator. This synchronization prevents energy waste, helping residential properties keep their total electrical consumption within highly sustainable limits.

This drive mechanism is constructed as a premium JAPAN TECHNOLOGY MOTOR, adhering to strict international quality control protocols and rigorous machining tolerances. The electrical stator is built with Class F insulation materials, which are officially certified to withstand internal operating temperatures reaching up to 155 degrees Celsius. This high thermal rating protects the internal copper windings from degradation during extended periods of operation, such as when moving heavy household goods or running multiple consecutive trips. Additionally, the casing carries an IP41 protection code, providing a solid defense against solid objects larger than 1 millimeter and protecting internal electronics from vertically falling drops of water or condensation. This protection ensures that the core driving elements remain isolated from typical environmental hazards found within structural shafts.

Spatial utilization is a critical factor in private residential buildings, where every square meter of living space is highly valuable. Unlike a massive commercial building or complex high rise buildings that utilize expansive overhead machine rooms, this unit is designed for an MRL installation type. A machine-room-less layout eliminates the need for a dedicated structural room on top of the house, allowing architects to maintain clean roof lines and optimize indoor living space. The compact 126 kg motor mounts directly inside the guide rail network or at the top of the existing hoistway. This direct integration simplifies the overall architectural planning process and reduces the raw material costs associated with building separate mechanical concrete platforms.

Prioritizing the safety of elevator systems is the absolute most critical responsibility for any residential equipment manufacturer. Private home environments often lack on-site maintenance technicians, meaning the mechanical drive must incorporate absolute fail-safe systems. This motor features a heavy-duty dual-circuit electromagnetic braking setup that clamps onto the main traction shaft instantly if power is lost. This automatic mechanical engagement prevents the cabin from drifting or experiencing uncontrolled movement within the vertical shaft. High-resolution feedback encoders constantly track the exact position and velocity of the lift, communicating directly with the main control panel. If the encoder detects the slightest speed anomaly, the safety system deploys the brakes immediately, ensuring that passengers remain completely protected inside the vehicle.

Long-term reliability is further enhanced by the careful engineering of the drive sheave, which is machined with precise V-shaped or U-shaped grooves to maximize rope traction. Proper coordination between the steel cables and the sheave grooves prevents rope slippage while significantly reducing localized wear on the metal surfaces. Because this gearless design eliminates the need for lubricating oils, maintenance requirements are incredibly low. Homeowners do not have to contend with regular gear oil changes, filter cleanups, or unpleasant chemical odors drifting into living quarters. Periodic maintenance inspections are quick and non-invasive, requiring technicians to simply verify brake air gaps, check the electrical terminal connections, and run routine diagnostic cycles via the main control interface.

When defining the weight capacity of a private residential lift, a 450 kg threshold offers the perfect compromise between utility and structural efficiency. This rating allows the cabin to handle multiple passengers simultaneously, accommodate wheelchair access, or safely transport heavy household items like furniture and groceries between floors. The electrical control drive adjusts the output torque dynamically based on the real-time weight inside the cabin, ensuring that acceleration curves remain uniform whether the vehicle is empty or fully loaded. This constant speed regulation provides a reliable ride experience that matches the luxurious feel of high-end private residences, making vertical travel smooth and unnoticeable to those inside.

Selecting the correct drive infrastructure requires analyzing the total lifecycle costs and the mechanical layout of the residential project. By combining a 380V three-phase permanent magnet configuration with a highly compact MRL frame, this machine delivers industrial-grade reliability within a residential footprint. It avoids the high energy consumption patterns of older hydraulic systems while offering far greater stopping precision. The combination of precision Japanese engineering, robust Class F insulation, and advanced fail-safe braking mechanisms guarantees decades of continuous operation. For any modern domestic project looking to establish safe, reliable, and energy-conscious vertical mobility, this premium traction system represents the definitive engineering choice for long-term structural success.
